Preferences

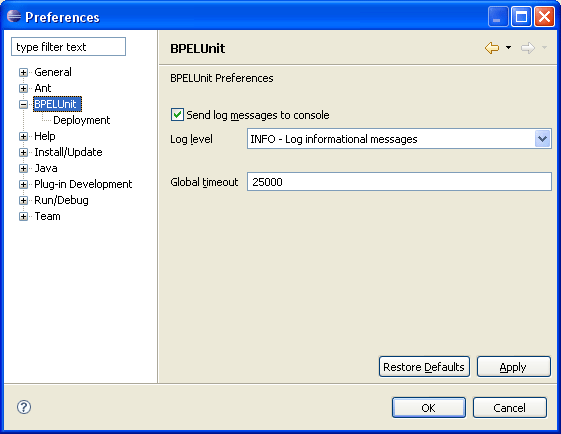

The BPELUnit framework can be configured by using the Preferences Pane. To display it, select Window > Preferences... in the main menu, then select BPELUnit. The following page is displayed:

On this page, you may configure the logging mechanism of BPELUnit and the global timeout:

Logging: BPELUnit uses log4j to log its internal progress. To display these messages in the Console view, click the Send log messages to console check box. Additionally, you can configure the log level, ranging from OFF (no logging) to ALL (log everything). A sensible log level is INFO.
Global timeout: BPELUnit receives and sends its messages over HTTP connections from and to the BPEL process. Such operations may fail for a number of reasons. BPELUnit waits for the given number of milliseconds before giving up on such operations. The default is 25 seconds.

The second page of the preferences can be reached by selecting Deployment. On this page, you may configure the deployers registered in BPELUnit:

Each deployer may have different setup requirements. Pressing Add... allows creating new options for the selected deployer and provides help on which options are available. The options for the two standard deployers of BPELUnit (Oracle and ActiveBPEL) are as follows:

Oracle

Key	Value
OracleDirectory	The absolute file path to the Oracle BPEL server directory.
OracleDomain	The name of the Oracle Domain to deploy to.
OracleDomainPassword	The password for the specified domain.

ActiveBPEL

Key	Value
ActiveBPELDeploymentDirectory	The directory of the ActiveBPEL Tomcat installation containing the .bpr files
ActiveBPELDeploymentServiceURL	The URL to the ActiveBPEL deployment web service.
